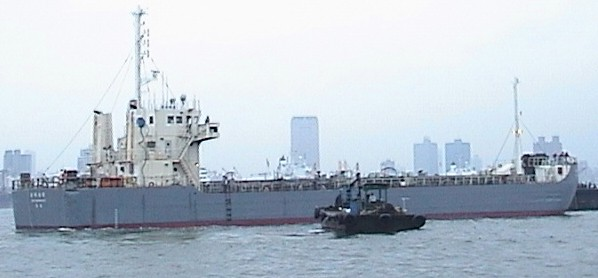

Vessel Name

Name:

VERSATILE (ex Da Chang No.3)

Call Sign : BDAU

Type:

Self-propelled twin screw  hopper barge

Principal Dimensions

Length Over All / L. B.P.:

72.594 m

68.00 m

Breadth (mld):

14.00 m

Depth (mld)/ Draught (mld):

4.50 m

3.50 m

Accomodation

Complement

6

Accomodation

2 x Single Berth Cabin

1 x  Four Berth Cabin

Air Conidtioning

Daikin US8FA

22,500 kcal/hr + 15 kw

Navigation Equipment

Radar: 64 N.M. Day Light Radar

Compass: Barnacle Type Std

GPS: DGPS

SSB:  GMDSS compliance

VHF: GMDSS compliance

Navtex:

Machinery Data

Propulsion  Engine:

2 x 650 ps @ 950 RPM MCR (Niigata Diesel Engine 6L18CX)

Rudder Propellers:

2 x Niigata  well mounted  Z-Peller ZP-S6

Propeller

f1,400  mm

Auxilliary  Engines:

2 x 95 hp @ 1,200 RPM (Yanmar  Diesel Engine 4KDL)

Generator

2 x 75 kva (Taiyo Electric FB Type)

Maximum Speed:

9.63 knots (Trial)

Fuel Consumption:

approx. 4 tons per day  (steaming)

Anchor Windlass (fwd)

4 tons x 9m/min

Capstan (Aft P& S)

 3 tons x 15m/min

Anchors & Chains:

Mushroom Type  : 1 x 2,500 kg

Stud Link Chain: 140mx 38f U2

Hopper Capacity

Hopper Capacity :

1,561 m³

43.2m long x 8.4 m wide

Hopper Construction:

16mm Hopper Plate

12  Hydraulic Operated Doors

Hopper  Doors:

2 doors/ Hyd. Cylinder & Latch

Door Dimensions: 6,000 x 2,650

Hydraulic System:

2 x 60 hp electric driven pumps

Working Pressure: 160 bars

Tank Capacity:

Fuel Oil : 113  tons

F.Water : 22.49 tons

Other Information

Flag/ Port of Registry / Class

Kaohsiung / Taiwan

CR100, Coastal Service

Gross / Net Tonnage:

1,400.75 tons

423 tons

Displacement/Deadweight

2,108 tons @ 3.50 m draft

2,079 tons @ 3.5 m draft

Country of Build / Year Build :

Japan

1983
